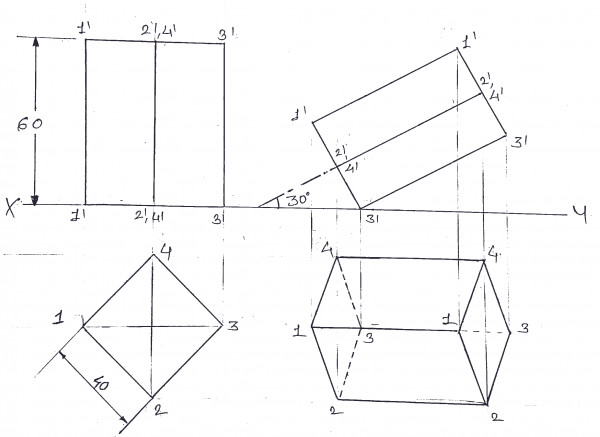

A square prism with side of base 40 mm and axis height 60 mm is resting on HP on one of its base corner such that its axis is inclined at 30o the HP and parallel to the VP. Draw its projections
Team Answered question April 5, 2024
Given Data Side of prism = 40 mm Axis length = 60 mm Resting on one of its corner = HP Axis inclination with HP = 30°
Team Answered question April 5, 2024
