1 answer

Best answer

Answer: \(R_1 = 496.6\ \text{N}\), \(R_2 = 1463.3\ \text{N}\), \(R_3 = 869.1\ \text{N}\), \(R_4 = 573.5\ \text{N}\).

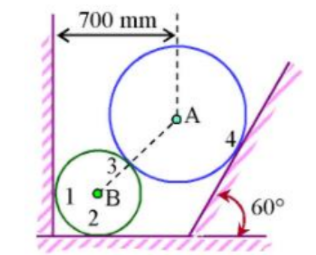

Data from the figure: sphere B (750 N, r = 300 mm) sits on the horizontal floor (contact 2) against the vertical wall (contact 1). Sphere A (1000 N, r = 400 mm) rests on B (contact 3) and on a smooth plane inclined at \(60^\circ\) to the horizontal (contact 4). The centre of A is 700 mm from the vertical wall.

1. Geometry of the line of centres BA

Centre of B is 300 mm from the wall, centre of A is 700 mm from the wall, so the horizontal distance between centres = 700 - 300 = 400 mm.

Distance between centres \(AB = 400 + 300 = 700\) mm.

\(\cos\theta = \dfrac{400}{700} = 0.5714 \Rightarrow \theta = 55.15^\circ\) (angle of BA with the horizontal)

2. Equilibrium of sphere A

Forces: 1000 N down; \(R_3\) along BA (pushing A up and away from B, at \(55.15^\circ\) to the horizontal); \(R_4\) normal to the \(60^\circ\) plane, i.e. at \(30^\circ\) above the horizontal, pointing back towards the wall.

\(\sum F_x = 0:\ R_3 \cos 55.15^\circ = R_4 \cos 30^\circ\)

\(\sum F_y = 0:\ R_3 \sin 55.15^\circ + R_4 \sin 30^\circ = 1000\)

From the first: \(R_4 = \dfrac{0.5714}{0.8660} R_3 = 0.6598\,R_3\)

\(0.8207\,R_3 + 0.5 \times 0.6598\,R_3 = 1000 \Rightarrow 1.1506\,R_3 = 1000\)

\(R_3 = 869.1\ \text{N}\), \(\ R_4 = 0.6598 \times 869.1 = 573.5\ \text{N}\)

3. Equilibrium of sphere B

Forces: 750 N down; \(R_3 = 869.1\) N from A along AB (down and towards the wall); \(R_1\) horizontal from the wall; \(R_2\) vertical from the floor.

\(\sum F_x = 0:\ R_1 = R_3 \cos 55.15^\circ = 869.1 \times 0.5714 = 496.6\ \text{N}\)

\(\sum F_y = 0:\ R_2 = 750 + R_3 \sin 55.15^\circ = 750 + 713.3 = 1463.3\ \text{N}\)

Check (both spheres together): \(R_1 = R_4\cos 30^\circ = 496.6\) N and \(R_2 + R_4 \sin 30^\circ = 1463.3 + 286.7 = 1750\) N = total weight.


अजिंक ग. · 21 Jan 2022 Report
