Topic: Isothermal and adiabatic processes· Thermodynamics

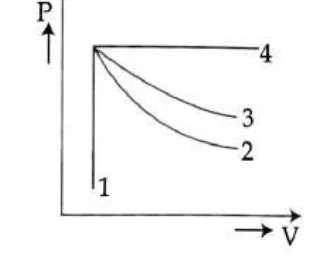

An ideal gas undergoes four different processes from the same initial state as shown in the figure below. Those processes are adiabatic, isothermal, isobaric and isochoric. The curve which represents the adiabatic process among 1, 2, 3 and 4 is :

P-V diagram with four curves 1-4 from common point

1. 4

2. 1

3. 2

4. 3

Doubtly Asked 30 Oct 2026 NEET UG 2022 Practice test neet Save WhatsApp Report

1 answer

Best answer

Answer: 3. 2

On a P-V diagram, all processes start from the same point. Curve 1 is vertical (constant volume, isochoric) and curve 4 is horizontal (constant pressure, isobaric).

Between the other two, the adiabatic curve is steeper than the isothermal because \(PV^\gamma=\text{const}\) with \(\gamma>1\) falls faster than \(PV=\text{const}\).

Curve 2 is steeper, so it is adiabatic and curve 3 is isothermal. Answer: curve 2, option (3).
