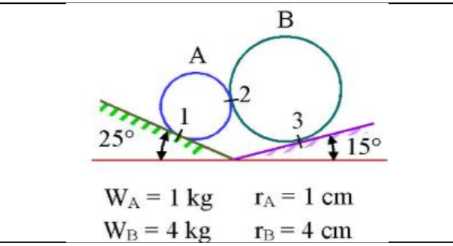

Determine the reaction points at constant 1,2 & 3. Assume smooth surfaces.

0 votes
240 views
in Engineering Mechanics by (98.9k points)
retagged by

Determine the reaction points at constant 1,2 & 3. Assume smooth surfaces.

1 Answer

0 votes
by (1.3k points)
selected by

Best answer

\(\alpha=\tan^{-1}(0.9692)\)

\(=44.1038 ^o\)

\(R_1=19.75 N\)

\(R_2=11.6237 N\)

\(R_3=32.2493N \)
